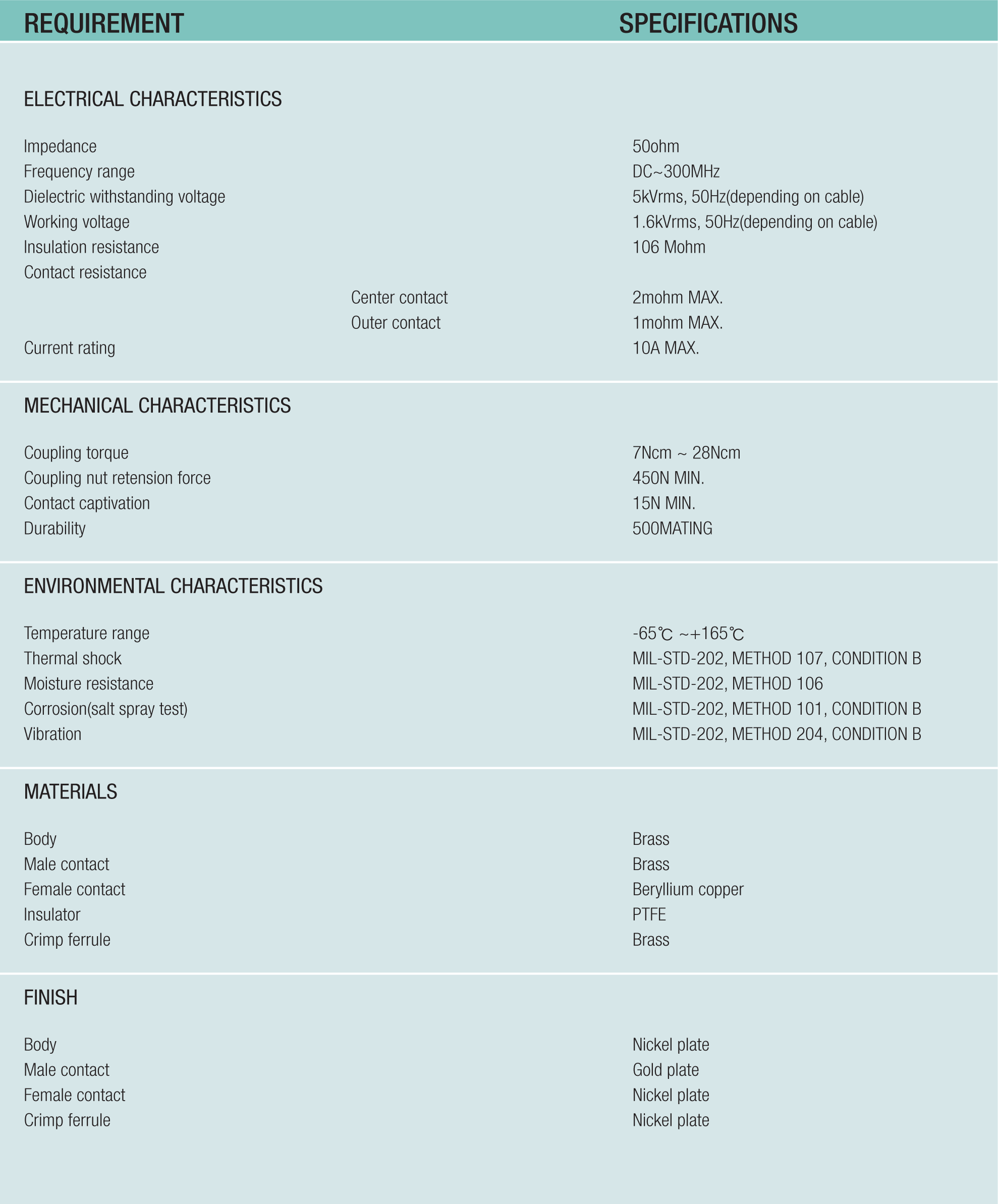

MHV connectors are coaxial miniature high voltage connectors with 5kVrms test voltage(mated pair).
MHV connectors have a working voltage up to 1.6kVrms in mated condition and are suitable for applications
up to 300MHz.
MHV connectors are of similar design to BNC connectors but the insulators protrude over te outer contacts
to give a degree of contact-voltage proof when unmated.
However, if a high degree of protection in the unmated condition is required, use of series SHV is
