2.92mm Coaxial Connectors
Technical Specifications \| Products Isotec 2.92 mm connectors are 50 ohms precision connectors which are designed for the optimum RF performance up to 40 Ghz. The connectors are mechanically compatible with 3.5mm and SMA connectors and they are both for Military as well as for Telecommunication application.

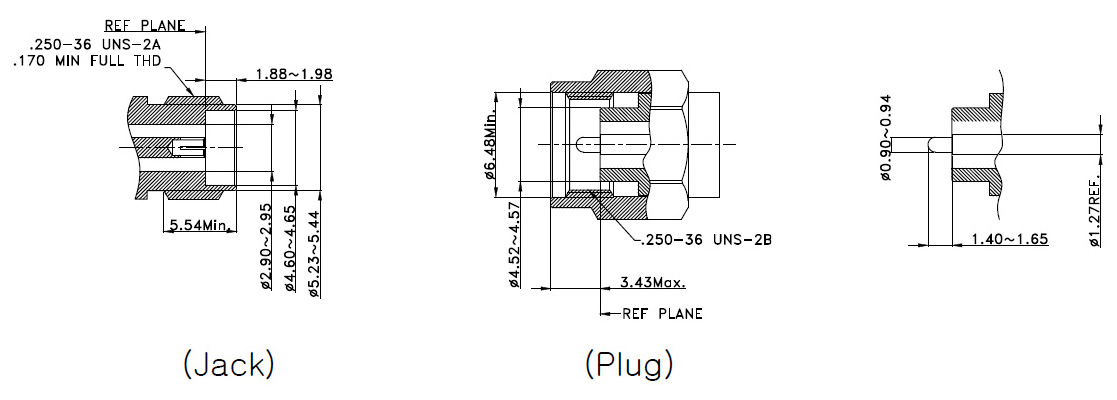

Interface Standards (MIL-STD-348)

Technical Characteristics

Requirement	Specification
ELECTRICAL DATA
Impedance	50 Ohm
Frequency Range	DC~40GHz
Withstand Voltage of Dielectirc	1200 Vrms max
Contact Resistance	Inner Conductor : 3mm Ohm max
Contact Resistance	Outer Conductor : 2mm Ohm max
Insulation Resistance	5000M Ohm min.
Insertion Loss	0.35 dB max at 40GHz
VSWR	1.25 : 1 up to 40GHz
RF Leakage	-90dBm min.
Power Handling	80W at 2GHz
MECHANICAL DATA
Center Contact Retention Force	4 pound (axial)
Coupling Nut Retention Force	270N/ 27.7 kfg/ 61 lbs
Life	500 matings
Recommended Mating Torque	0.9~1.13 Nm/ 8~10 lbs
Proof Torque	1.7 Nm/ 15.0 lbs
ENVIRONMENTAL DATA
Temeprature Range	-40C ~ +125C
Corrosion Resistance	MIL-STD-202, Method 101
Corrosion Resistance	Condition B
Moisture Resistance	MIL-STD-202, Method 106
Thermal Shock	MIL-STD-202, Method 107,
Thermal Shock	Condition B
Vibration	MIL-STD-202, Method 204,
Vibration	Condition D
MATERIALS
Bodies	Stainless Steel
Female Contacts	Beryllium Copper
Insulators	Ultem
MATERIALS
Bodies	Passivated
Center Contacts	Gold Plated

2.92mm Male Straight Direct Solder type

Part No.	Cable
S292-A111-001	.086

2.92mm Male Straight Clamp type

Part No.	Cable
S292-A116-001	RG405

2.92mm Male Straight Solder type
(Body HEX 6.35)

Part No.	Cable
S292-A147-001	.141

2.92mm Male Right Angle Solder type

Part No.	Cable
S292-A602-001	0.86

2.92mm Female Straight

Part No.	Cable
S292-A110-002	LL-165

2.92mm Female
Direct Solder type

Part No.	Cable
S292-A111-002	RG405

2.92mm Female
End Launch Connector

Part No.	Cable
S292-A203-009
