MCX Coaxial Connectors


Interface Dimensions | Technical Specifications | MCX Connectors | Download MCX Coaxial Connector Catalog

The MCX Micro miniature coaxial connector does not only represent a smaller version of the SMB coaxial connector. The essential functional elements such as center contacts and insulators correspond with those of the SMB housing and engaging mechanism, however are made to the reliability of the SMB but require up to 30% less space, than the SMB. In addition to these mechanical advantages, this connector range also meets the electrical requirement of MIL-C-39012 SMB. The MCX range can be used up to a frequency of 2GHz.

GENERAL
- Push-pull snap-on mating
- Standard CECC 22220

RF Coaxial Connectors - MCX Coaxial Connectors

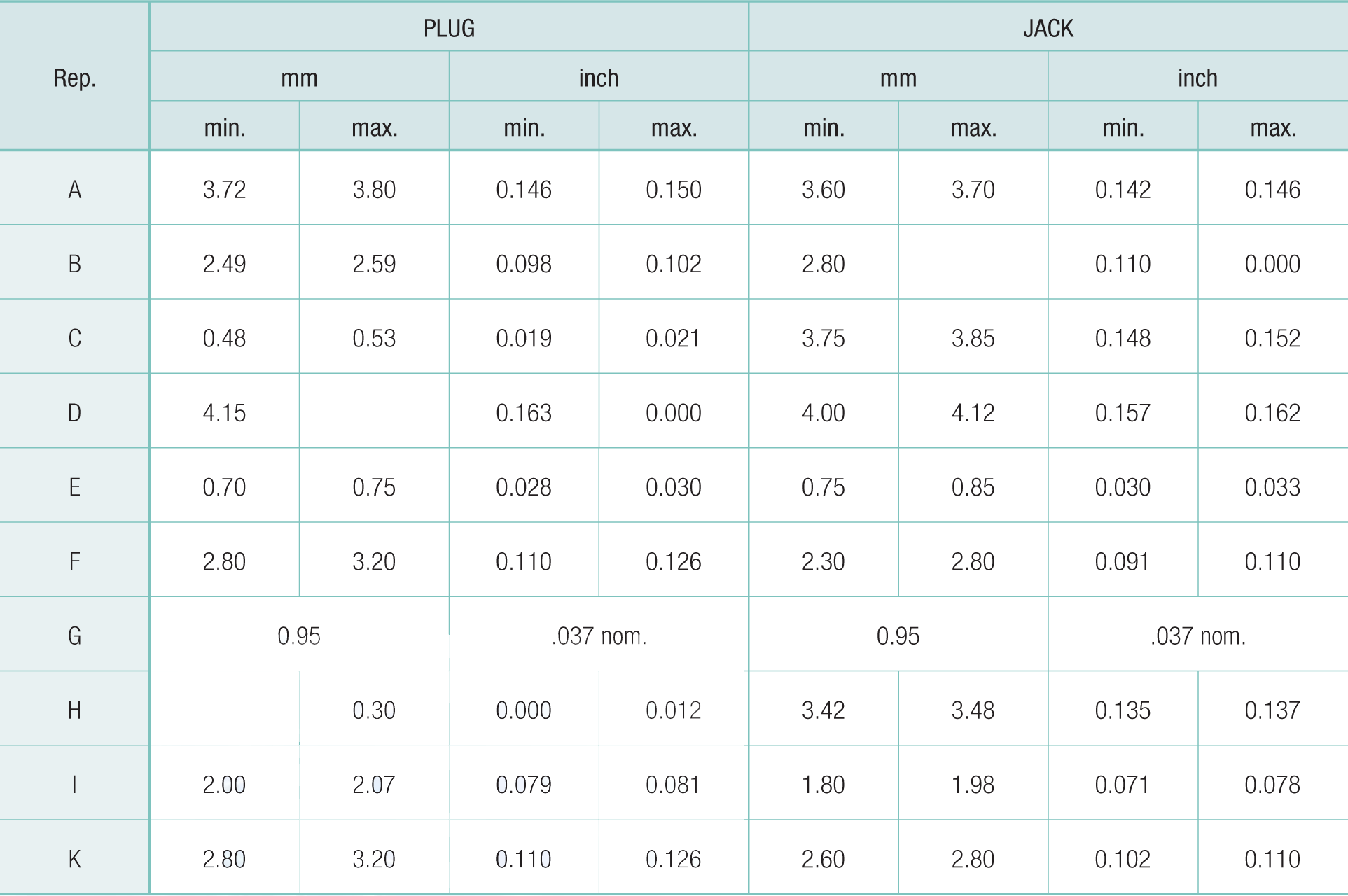

Interface Dimensions



Plug

Jack

SMP Coaxial Connectors

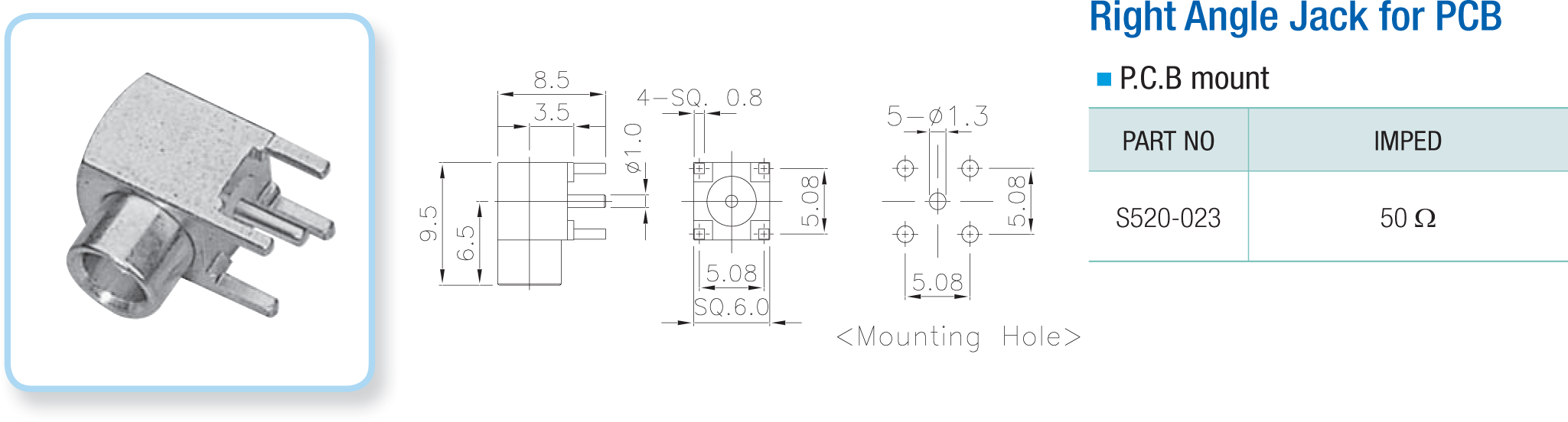

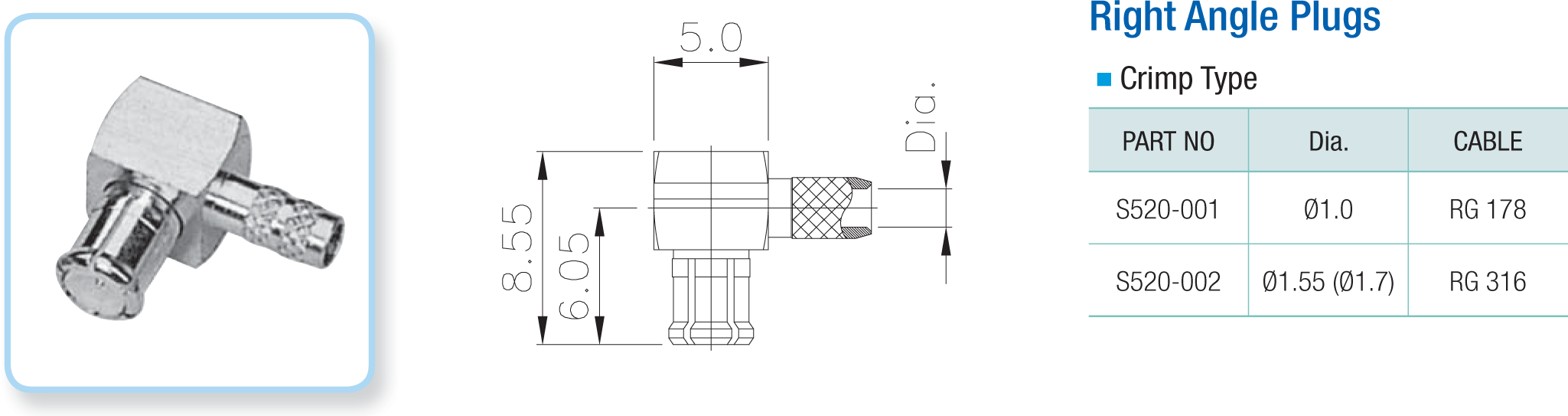

MCX Coaxial Connectors

MCX Coaxial Connectors
