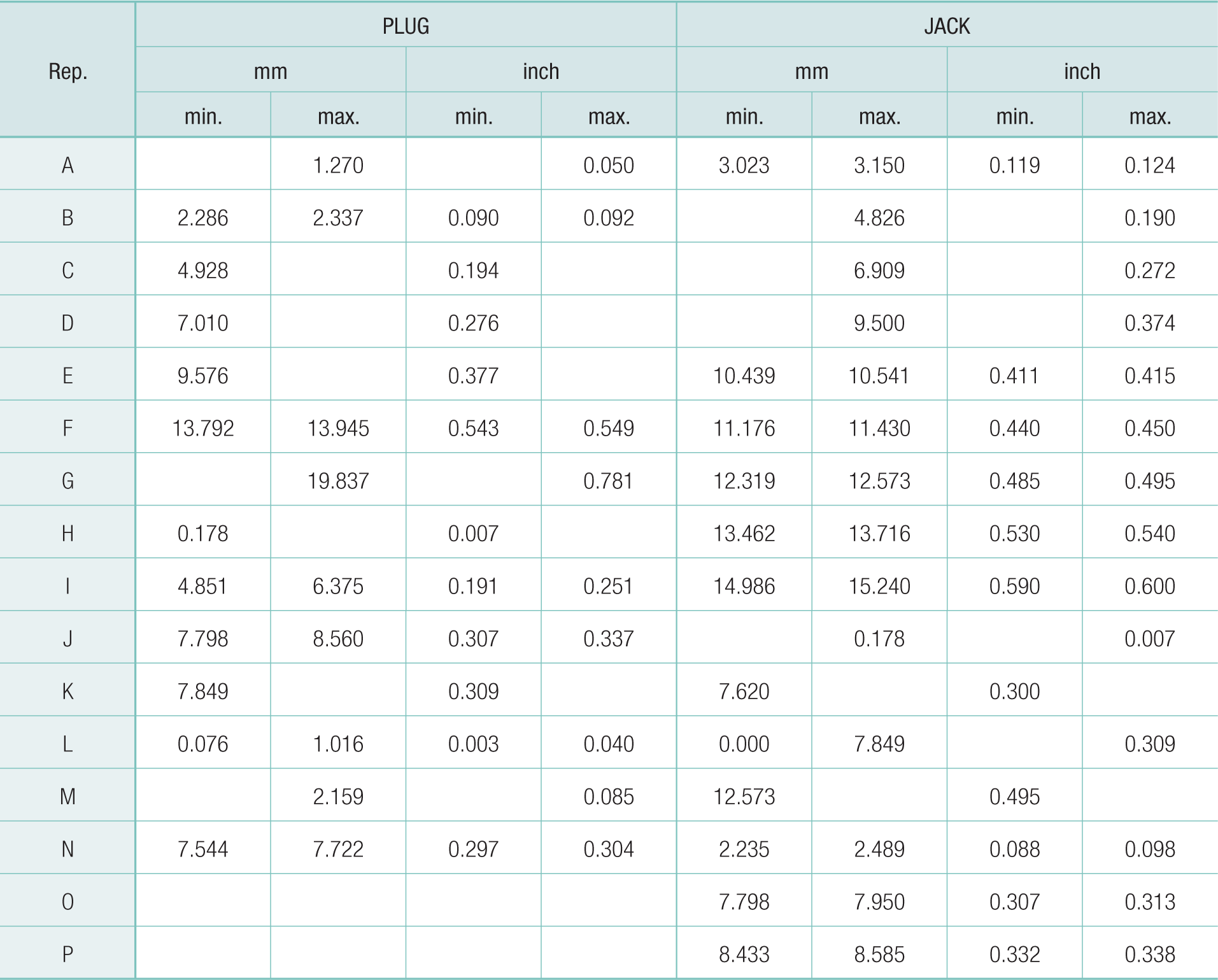

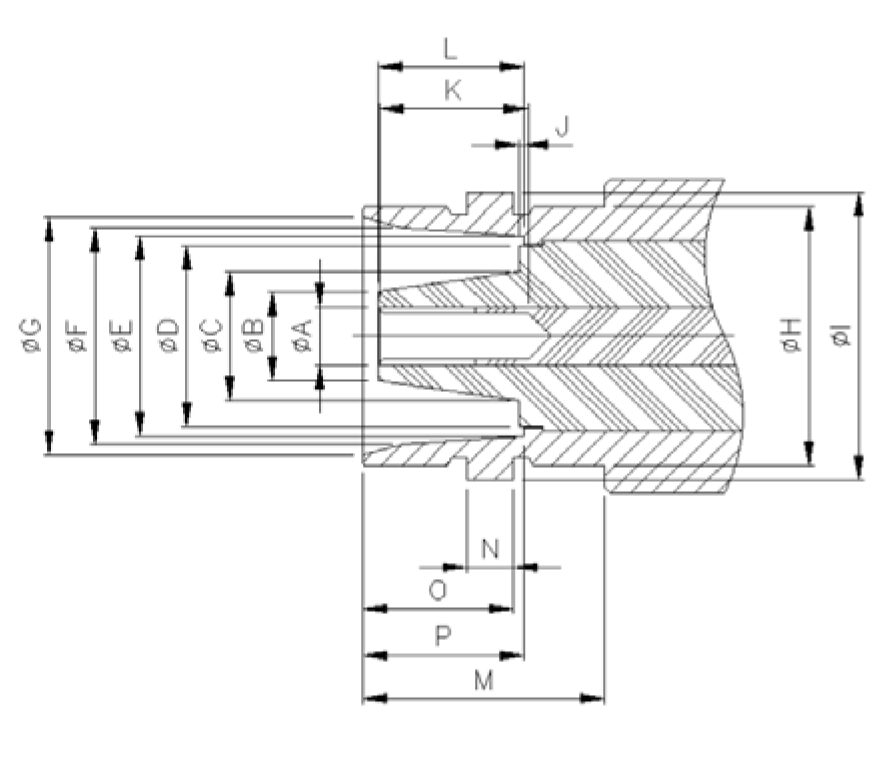

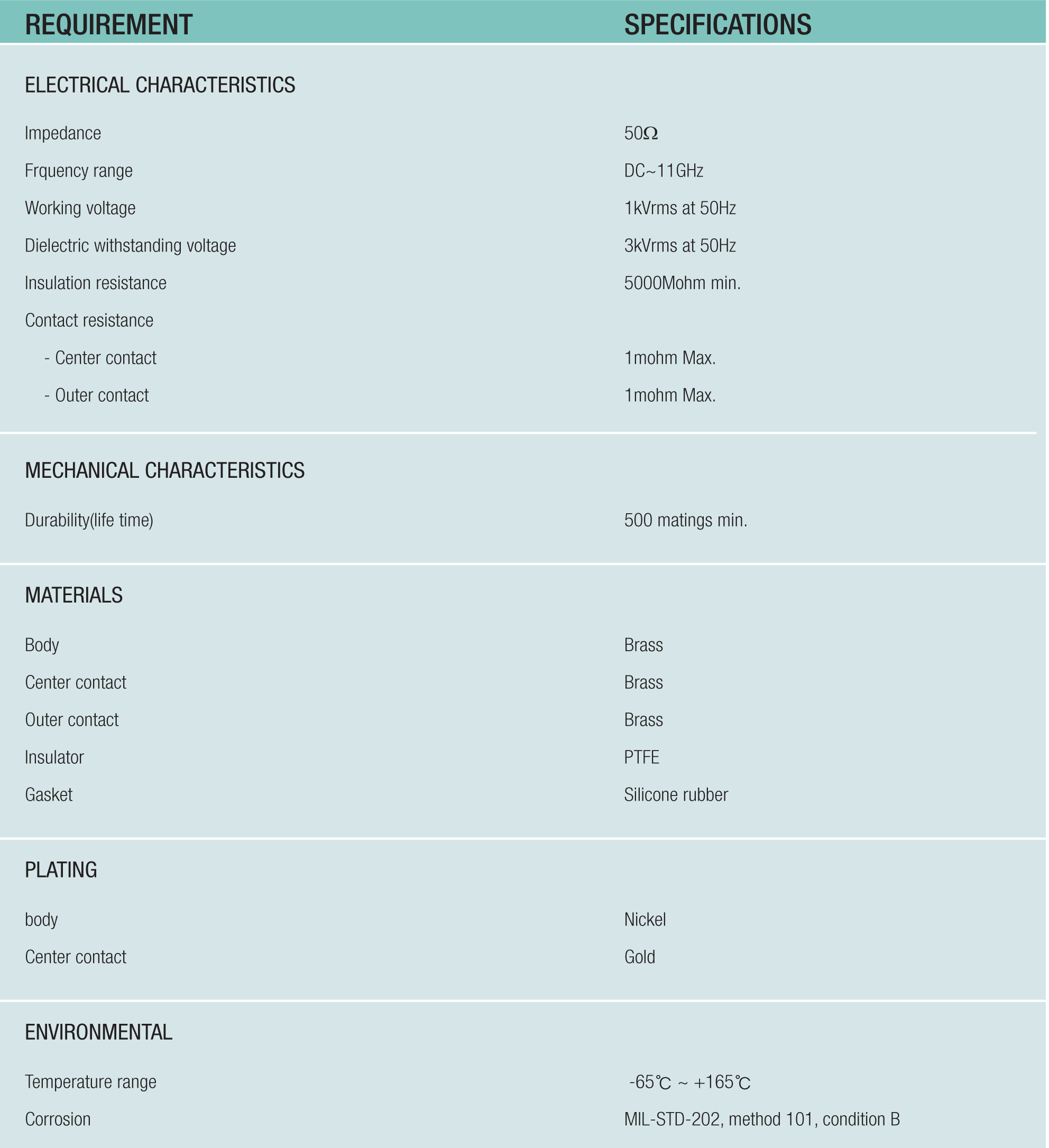

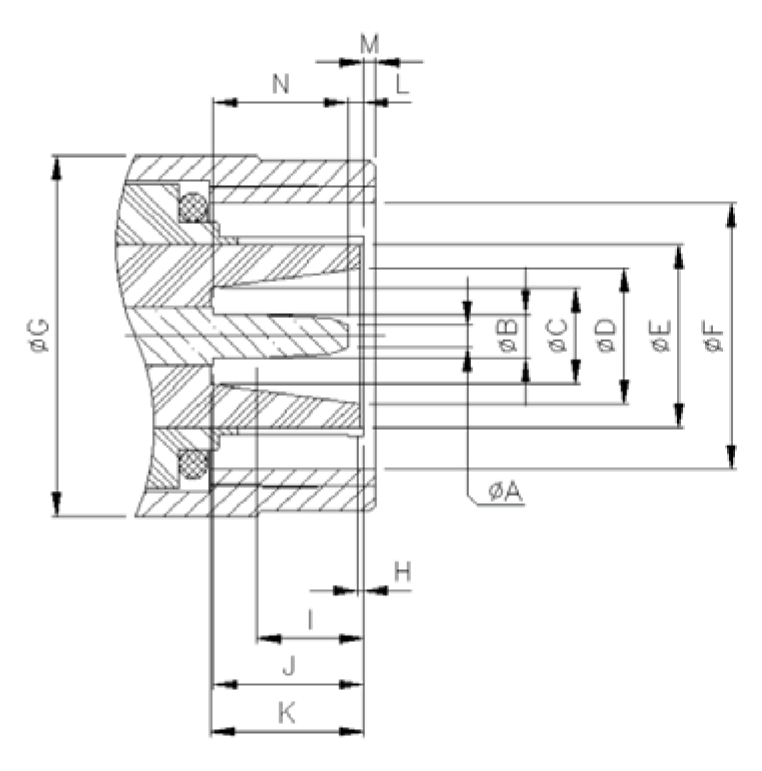

Interface Dimensions | Technical Specifications | C Connectors | Download C Coaxial Connector Catalog
C connectors are medium size RF connectors with two-stud bayonet mechanism which allows quick
and easy coupling and decoupling. The C connectors provice 50ohm impedance and the frequency
range is specified for applications up to 11GHz.
