CONNECTOR |
|
 MIL-DTL-38999 |
The connector of MIL-DTL-26482 Series ll Style series is a connector developed by our accumulated technology. This is of a bayonet coupling type with excellent electrical, mechanical and environmental properties, being widely used in aircraft equipment, high-tech missile communication equipment, etc. requiring high reliability. Especially, this has excellent EMI screening performing to perfectly intercept electromagnetic wave interruption, thus establish an exact signal line without external interference. This also enables wiring with a simple crimp tool during cable work, preventing inferiority during soldering, and shortening work time. |
 |
|
|
 MIL-DTL-38999 Series I Style Connector |
 Ordering Information |

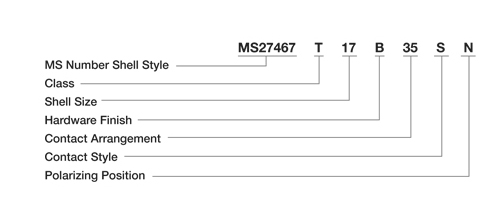

 Military Nomenclature |
|
 |
|
|
¡Æ MS Number Shell Style
MS27466 - Wall Mounting Receptacle
MS27467 - Grounded Plug, Grounded
MS27468 - Jam Nut Receptacle
MS27656 - Wall Mounting Receptacle
(back panel)(Class E)
¡Æ Class
E - Inactive for new design.
Superseded by Class T.
T - Environment - resistant with
accessory threads and teeth.
¡Æ Shell Size
9, 11, 13, 15, 17, 19, 21, 23, and 25
¡Æ Contact Arrangement
MIL-STD-1560A
|
¡Æ Hardware Finish
A - Silver to light iridescent color cadmium plate over
nickel, -65¡É to +150¡É (-85¢µ to +302¢µ)
B - Olive drab cadmium over electroless nickel plate,
-65¡É to +175¡É (-85¢µ to +347¢µ)
F - Electroless nickel coating, -65¡É to +200¡É (-85¢µ to 392¢µ)
¡Æ Contact Style
P - Pin
S - Socket
A - Less Pin Contact*
B - Less Socket Contact*
* Used only when other than power contacts are to be
installed (i.e., shielded, thermocouple, etc.)
¡Æ Polarizing Position
A, B, C, and D. (No letters required for normal)
Note : To order MS connectors less standard power contacts,
purchase order must state ¡°Less Contacts¡±.
|
|
|

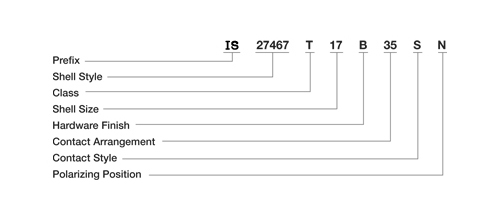

| ISOTEC Nomenclature |
|
 |
|
|
¡Æ Prefix
YH - YEONHAB
¡Æ Shell Style
27466 - Wall Mounting Receptacle
27467 - Grounded Plug, Grounded
27468 - Jam Nut Receptacle
27656 - Wall Mounting Receptacle
(back panel)(Class E)
¡Æ Class
E - Inactive for new design.
Superseded by Class T.
T - Environment - resistant with
accessory threads and teeth.
¡Æ Shell Size
9, 11, 13, 15, 17, 19, 21, 23, and 25
|
¡Æ Hardware Finish
A - Silver to light iridescent color cadmium plate over
nickel, -65¡É to +150¡É (-85¢µ to +302¢µ)
B - Olive drab cadmium over electroless nickel plate,
-65¡É to +175¡É (-85¢µ to +347¢µ)
F - Electroless nickel coating, -65¡É to +200¡É (-85¢µ to 392¢µ)
¡Æ Contact Arrangement
MIL-STD-1560A
¡Æ Contact Style
P - Pin
S - Socket
A - Less Pin Contact*
B - Less Socket Contact*
* Used only when other than power contacts are to be
installed (i.e., shielded, thermocouple, etc.)
¡Æ Polarizing Position
A, B, C, and D. (No letters required for normal)
|
|
|

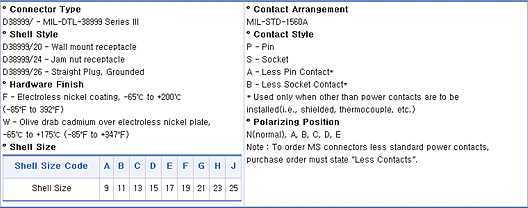

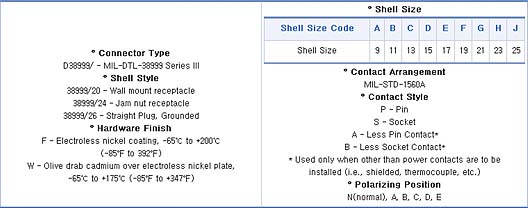

| MIL-DTL-38999 Series III Style Connector |
| Ordering Information |

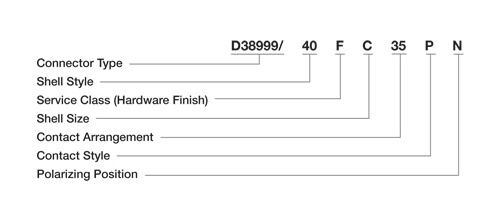

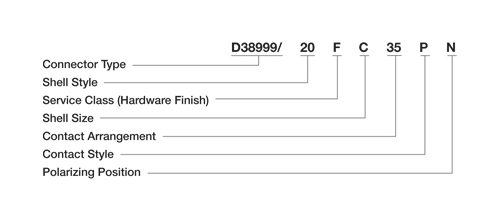

| Military Nomenclature |
|
 |
 |

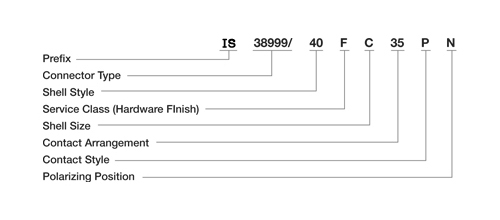

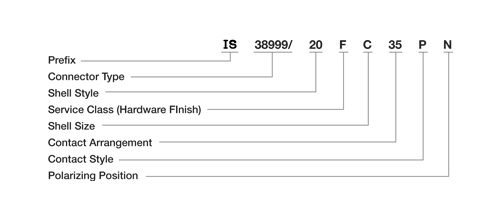

| ISOTEC Nomenclature |
|
 |
 |

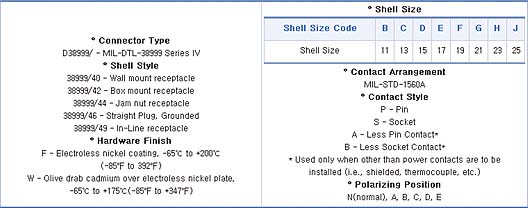

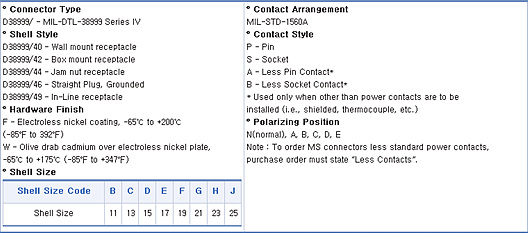

| MIL-DTL-38999 Series IV Style Connector |
| Ordering Information |
| Military Nomenclature |
|
 |
 |
| ISOTEC Nomenclature |
|
 |
 |
| |
| Technical Data |
| Characteristic |
¡Æ Corrosion-resistant shells of aluminium alloy with cadmium over nickel plating withstand a 500 hours salt spray exposure
¡Æ Rear release crimp snap-in contacts
¡Æ Hight contact density
¡Æ Standard MIL-C-39029 contacts, MIL-I-81969 application tools and MIL-STD-1560 insert arrangements
¡Æ Special/custom capabilities
¡Æ 100% Scoop-proof - Series I, III and IV
¡Æ Operated under severe high temperature vibration testing through 200¡É - engineered for high density circuitry - Series III, IV
¡Æ Interfacial seal helps prevent electrolytic erosion of contacts - Series III, IV
¡Æ Superior EMI shielding provides outstanding protection up to 65dB at 10 GHz. - Series III, IV |
| |

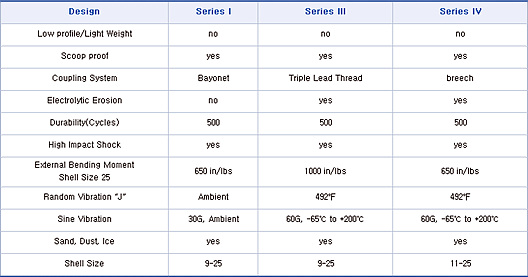

| Specification Comparison |
 |

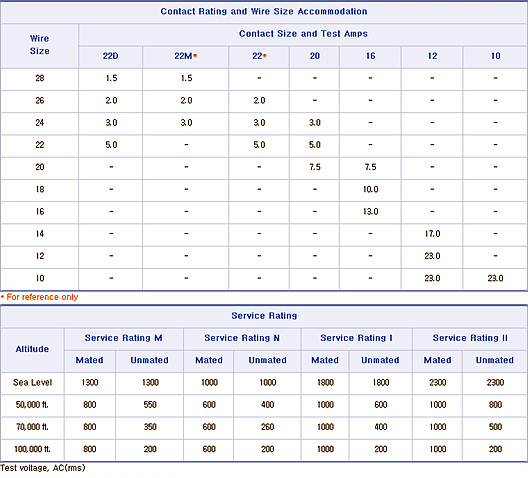

| Contact Rating |
 |
| Material |
| Performance and Material Specification |

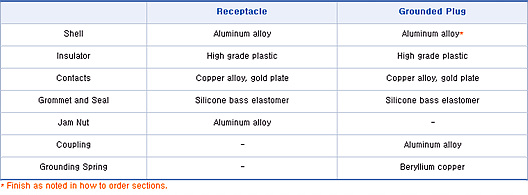

| Materials and Finishes |
 |

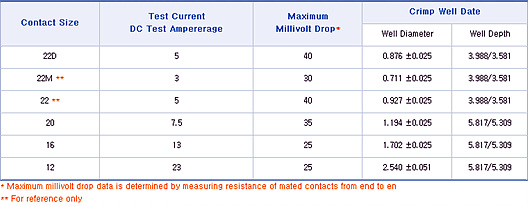

| Electrical Data |
 |

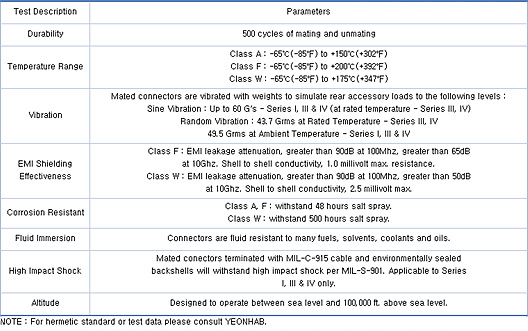

| Test Data |
 |
| Contact Part |

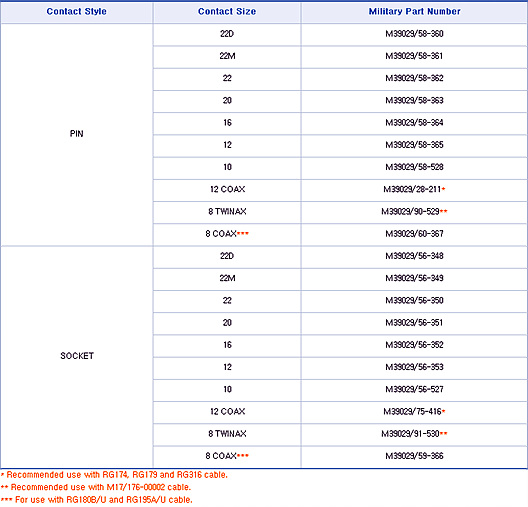

| Contact Part Number Cross Reference |
 |

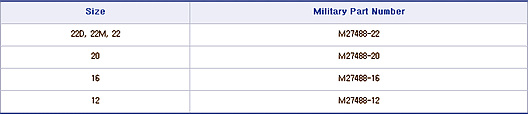

| Seal Plugs |
 |

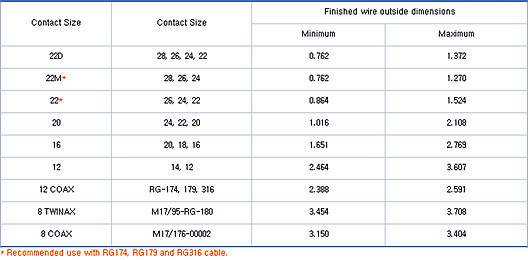

| Wire Sizes and Dimensions |
 |

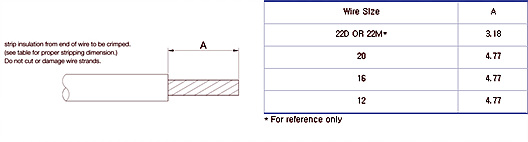

| Wire Stripping |
 |
| Tools |

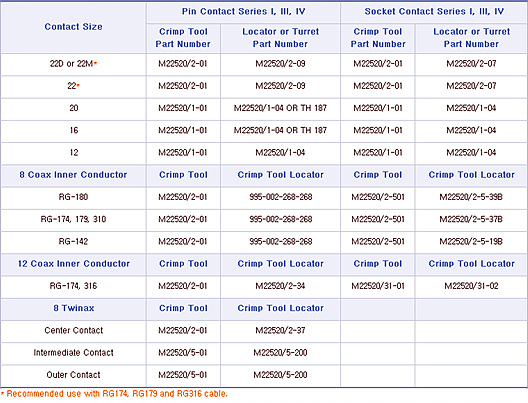

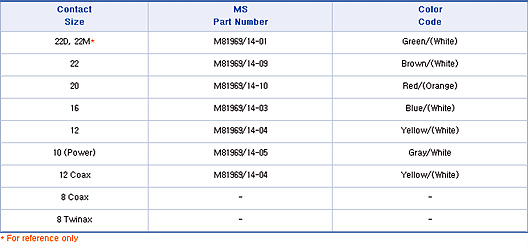

| Tools - Crimp |
 |
| Tools - Crimp |
| Plastic Tool |
 |
| Metal Tool (Angle Type) |
 |

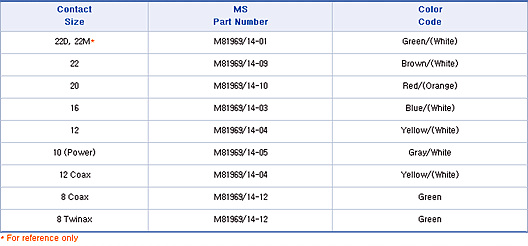

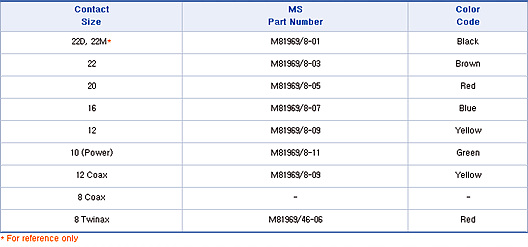

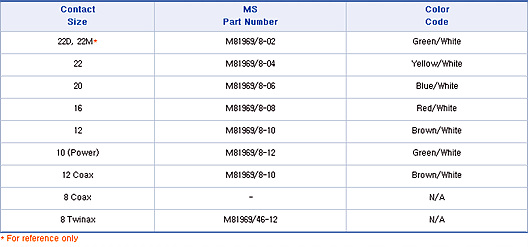

| Removal Tools |
| Plastic Tool |
 |
| Plastic Tool |
 |
| |
|
|
|
|
 |
